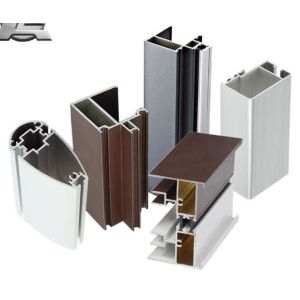

6061 Anti Peeling Off Anodizing Aluminum Window Frame Extrusions

Ask Lasest Price
Brand Name :	Huilv
Model Number :	HL
Certification :	ISO9001 , ISO14001
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	50 000 Tons/Year
Delivery Time :	5-15 working days

Add to Cart

Product Details
Company Profile

6061 Anti Peeling Off Anodizing Aluminum Window Frame Extrusions

Products Description:

Application	Aluminum construction (window and door / wall curtain)
Material	Alloy 6061 / 6063, We will never use aluminum scrap
Temper	T3-T8
Surface Treatment	Mill-Finished, Anodizing, Powder Coating, PVDF, Electrophoresis, Wood Grain, Polishing, Brushing, etc
Alloy or Not	Is Alloy
Length	3.0-7.2 Meters or Customized
Thickness	0.8mm-2.0mm or Customized
Profile type	1. Sliding window and door profiles 2. Casement window and door profiles 3. Louver window and door profiles 4. Bi-fold window and door profiles 5. Pivot window and door profiles 6. Awning window profiles 7. Heating insulation / thermal break profiles 8. Wall curtain profiles
Shape	Various shapes, parameters and colors available
Design	OEM or ODM is available, please send us your drawing

Aluminium Alloy: 6063, 6061, 6005, 6060 Thermal Treatment: T5-T6

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Other Impurity		Al
Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Unit	Total	Al
6063	(0.2-0.6)%	<0.35%	<0.1%	<0.1%	(0.45-0.9)%	<0.1%	<0.1%	<0.1%	<0.05%	<0.15%	all the rest
6061	(0.4-0.8)%	0.7%	(0.15-0.4)%	<0.15%	(0.8-1.2)%	(0.04-0.35)%	<0.25%	<0.15%	<0.05%	<0.15%	all the rest
6005	(0.6-0.9)%	<0.35%	<0.1%	<0.1%	(0.4-0.9)%	0.1%	<0.1%	<0.1%	<0.05%	<0.15%	all the rest
6060	(0.3-0.6)%	(0.35-0.6)%	(0.1-0.3)%	<0.1%	<0.1%	<0.15%	<0.05%	<0.1%	<0.05%	<0.15%	all the rest

T5: After extruding aluminum profiles from the extruder, the temperature is rapidly reduced by air cooling to meet the required hardness (8 to 12 degrees Webster).

T6: After extruding aluminum profiles from the extruder, then cooled by water to achieve higher hardness (over 13.5 Webster’s).

Production Line:

1. Extrusion Line

2. Wood Transfer Line

3. Powder Coating Line

4. Anodize Line

5. Polish Line

Order Process:

1. Drawing/colours/price confirmed

2. Die/Mould Making (7 to 10 days)

3. Samples for your comfirmation(1 to 4 days)

4. Mass production,after receive 30% deposit (15 to 20days)

5. Customer check before shipping or SGS checking

6. Pay the balance and we loaded the container
